STMICROELECTRONICS STM32439I-EVAL2
Evaluation Board, STM32F439NI MCU, 5.7" TFT LCD, 2 GB MicroSD Card, Six 5 V Power Supply Options
- Manufacturer:
- STMICROELECTRONICS STMICROELECTRONICS
- Manufacturer Part No:
- STM32439I-EVAL2
- Order Code:
- 2365199
- Technical Datasheet:
- STM32439I-EVAL2 Datasheet
- ECAD / MCAD
-
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- STMicroelectronics
- :
- 32bit
- :
- STM32F4
- :
- ARM
- :
- Cortex-M4
- :
- STM32F439NIH6
- :
- Eval Board STM32F429NIH6
- :
- -
Technical Documents (3)
Product Overview

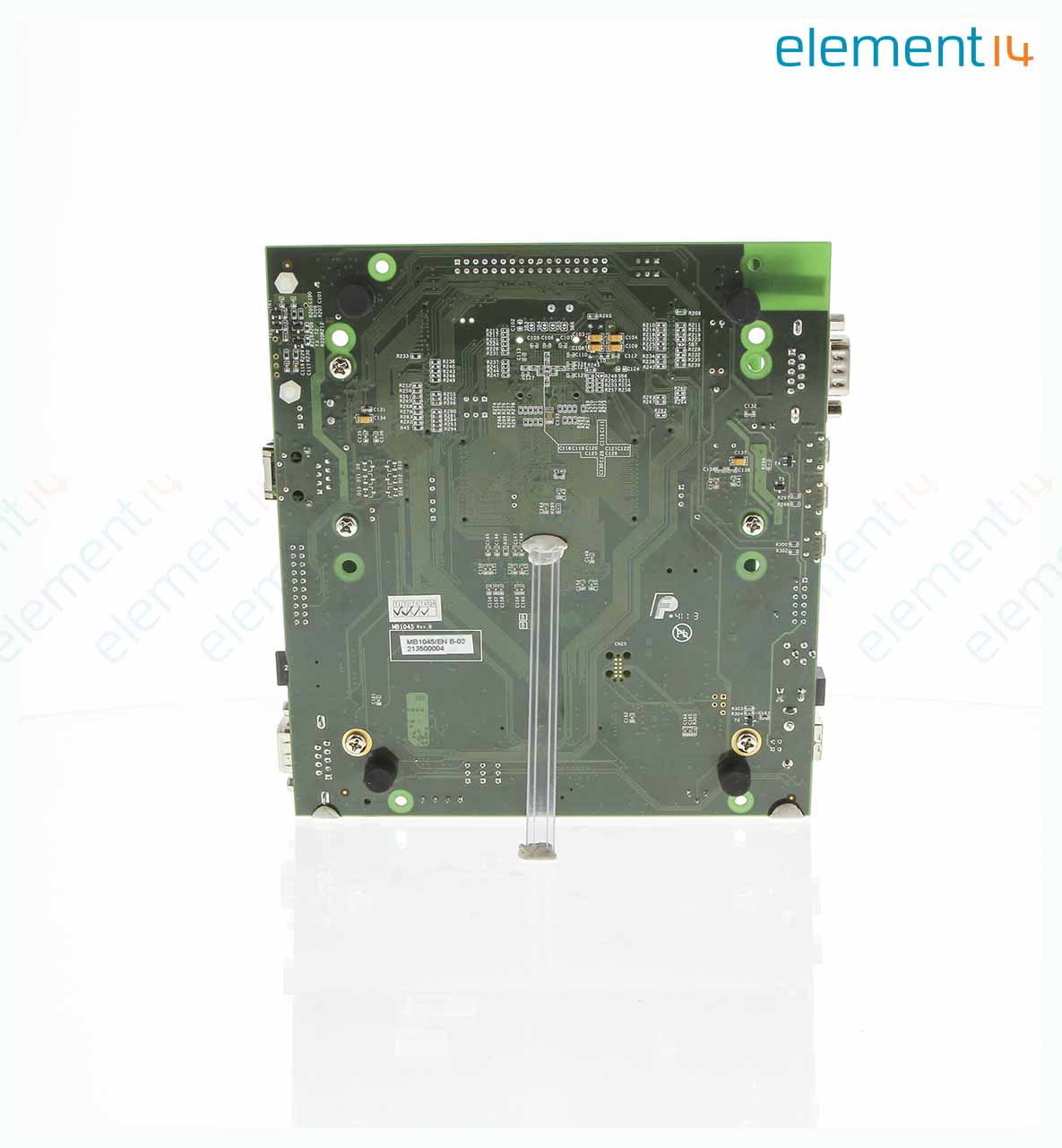

STM32439I-EVAL2 evaluation board is a complete demonstration and development platform for STM32F439 line microcontrollers. It is based on the high performance ARM Cortex-M4 32bit RISC core operating at a frequency of up to 180MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all ARM single precision data processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The integrated ST-LINK/V2 provides an embedded in circuit debugger and programmer for the STM32 MCU. Extension headers make it possible to easily connect a daughterboard for user specific application. The STM32439I-EVAL evaluation board includes everything required for beginners and experienced users to develop applications quickly.
- STM32F439NIH6 microcontroller
- 5.7inch colour TFT LCD with capacitive touch screen (480 x 272 pixels)
- SAI Audio DAC, stereo audio jack which supports headset with microphone
- Stereo digital microphone, audio terminal connector used to connect external speakers
- 2GBytes (or more) SDIO interface MicroSD card
- RF EEPROM on I2C compatible serial interface
- RS232 communication and CAN2.0A/B compliant connection
- IrDA transceiver and camera module
- JTAG/SWD and ETM trace debug support, ST-LINK/V2 embedded
- IEEE-802.3-2002 compliant Ethernet connector
Applications
Motor Drive & Control, Medical, Portable Devices, Audio, Industrial, Security
