Potřebujete další?
Množství | |
---|---|
1+ | 2 550.887 Kč |
Informace o produktu
Přehled produktu

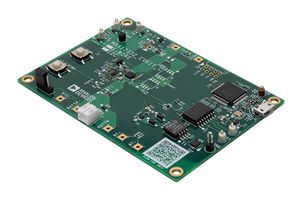

MAX17332X2EVKIT# is a MAX17332 evaluation kit (EV kit). It is a fully assembled and tested surface-mount PCB that evaluates the standalone charger, fuel gauge IC with protector and optional SHA-256 authentication for 1 cell lithium-ion/polymer batteries. The MAX17332 EV kits include the IC evaluation board with integrated I2C interface and USB micro-B cable.
- ModelGauge m5 algorithm
- Charges, monitors and protects a 1S battery
- Full protection solution on-board for evaluation
- Battery voltage (VBATT) range of +2.16V to +4.9V with default hardware
- Input voltage up to 5.7V
- Default current range -5A (discharge) to +2.56A (charge) with 10mohm sense resistor
- Two thermistor measurements
- On-board I2C communication interface with built-In MAXUSB interface
- Windows 7 or newer compatible software
- Proven PCB layout
Obsah
Evaluation board, USB micro-B cable.
Poznámky
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technické specifikace
Správa Napájení - Baterie
MAX17332X22+
Zkušební Deska MAX17332X22+, I2C Rozhraní, USB Micro-B Kabel, GUI Software na Bázi Windows
Nabíječka, Stav Nabití, Detekce Interního Samo-vybíjení, Ochrana
Analog Devices
-
Technické dokumenty (1)
Legislativa a životní prostředí
Country in which last significant manufacturing process was carried outZemě původu:Philippines
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Osvědčení o shodě
