Potřebujete další?
Množství | |
---|---|
1+ | 96.307 Kč |
10+ | 84.269 Kč |
100+ | 71.980 Kč |
250+ | 70.224 Kč |
500+ | 68.218 Kč |
1000+ | 65.208 Kč |
Informace o produktu
Přehled produktu

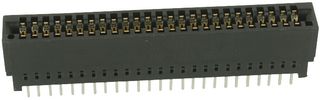

The Standard Edge II series Card Edge Connector onto printed circuit (PC) boards for use in electronic equipment. The connector is designed to connect a module PC board (daughter card) to a main PC board (motherboard). This connector is available in vertical, right-angle or straddle-mount configuration with through-hole, press-fit (compliant pin) or surface-mount contacts. Each connector has a double row of contact cavities with a centerline spacing of 2.54mm (0.100 inch). The connector is available with 6 through 140 positions. The connector is available with or without a pin 1 designation (an embossed triangle or square on the mating face of the connector). The connector feature omitted contacts for polarization to the PC board. Each connector features housing with a card slot which accepts 1.37 through 1.78mm (0.054 through 0.070 inch) thick daughter card. The connectors are available with or without a moulded key or inter-contact keying slots located in the card slot.
Technické specifikace
Oboustranný
2.54mm
Montáž Skrz Desku
2Řad
Fosforový Bronz
Tělo z PET (Polyester), Sklem Plněný
No SVHC (21-Jan-2025)
1.85mm
50 Kontakty
Přímý
Pájecí
30µ" Pozlacené Kontakty
Standard Edge II
Technické dokumenty (3)
Alternativy pro 5530843-5
Nalezen 1 produkt
Související produkty
Nalezen 1 produkt
Legislativa a životní prostředí
Country in which last significant manufacturing process was carried outZemě původu:China
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Osvědčení o shodě
