DCCM-51S6E518.0B-LF
Sestava Micro D Kabelu, Micro-D Zásuvka na Volný Konec, 51 Cest, 1.4 ft, 450 mm
16 Nyní si můžete rezervovat zásoby na skladě
| Množství | |
|---|---|
| 1+ | 4 885.835 Kč |
| 5+ | 4 734.101 Kč |
| 10+ | 4 579.859 Kč |
| 25+ | 4 455.964 Kč |
| 50+ | 4 406.807 Kč |
| 100+ | 4 333.824 Kč |
Informace o produktu
Přehled produktu

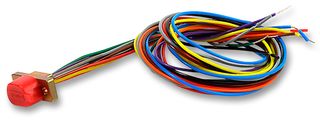

The DCCM-51S6E518.0B-LF is a 18-inch Dura-Con D Connector with diallyl phthalate glass-reinforced insulator, screw mount metal shell mounting type, 51 contacts, socket (receptacle) contact, 26AWG stranded wire size, MIL-W-16878/4, 7-strand wire type and colour coded per MIL-Std.681, system 1 (stranded wire only) insulation colour or wire finish. Silicone elastomer compression interfacial seal protects contacts from moisture and humidity and isolates contacts from each other and the metal shell. Rugged twist-pin contacts resistant to shock and vibration make metal shell Dura-Con an excellent choice for harsh environments such as airborne or space applications.
- 18" Lead length (stranded wire only)
- Aluminium shell provides extra strength and EMI/RFI shielding capability
- 3A Maximum Current Rating
- 600VAC RMS at Sea level withstanding voltage
- 8mΩ Maximum contact resistance
- -55°C to +135°C Operating temperature range
Technické specifikace
51 Cest. Micro-D Zásuvka
Volný Konec
1.4ft
-
Micro-D Zásuvka na Volný Konec
51Cest
450mm
Dura-Con DCCM Series
