2 Nyní si můžete rezervovat zásoby na skladě
Množství | |
---|---|
1+ | 5 062.900 Kč |
5+ | 4 387.997 Kč |
10+ | 3 656.664 Kč |
25+ | 3 583.430 Kč |
50+ | 3 510.448 Kč |
Informace o produktu
Přehled produktu

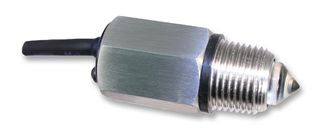

The OPT-A4-AR-2 is an Optical-level Switch works by emitting a beam of infrared light within a prism and measuring the amount of light received. When the measured fluid reaches the sensor the amount of emitted light received drops thus triggering the contacts. As the sensor is detecting the state between material covering or not covering the prism it can be used to detect the presence or absence of fluid thus preventing damage to pumps. Compact unit houses the infrared transmitter, the prism, the receiver and the electronics, there is also an external LED indicator to show the condition of the switch. The sensor requires a power supply of between 10- to 28VDC. The benefit of the modern optical sensor is that there are no moving parts that can retain material and get clogged up or damaged, simply fit and forget.
- IP68 Protection rating
- -10 to 125°C Operating temperature range
Technické specifikace
PNP
Liquid
-
316 Stainless Steel
Kabel
28VDC
125°C
Optical Level Switch
-
100mA
SPST-NO
10V
-10°C
OPT Series
Technické dokumenty (1)
Legislativa a životní prostředí
Country in which last significant manufacturing process was carried outZemě původu:Taiwan
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Osvědčení o shodě
