SDM300G-12-U-P219

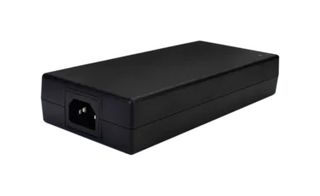

SDM300G-U series is a medical grade desktop AC-DC power supply with C14 inlet certified to the medical 60601-1 edition 3.1 safety standards for MOPP applications and 4th edition EMC requirements. Featuring compact size, medical power supplies utilize GaN (gallium nitride) technology and are a continuation of CUI's initiative to provide customers with global solutions for medical equipment.

• Single regulated outputs, no cable
• Over voltage, over current, over temperature and short circuit protections
• Power factor correction
• Output voltage of 12VDC
• Maximum output current of 24A, maximum output power of 288W
• Dimension is 183mm length x 85mm width x 35mm height
• Maximum ripple and noise is 120mVp-p (at full load, nominal input, 20MHz bandwidth oscilloscope)
• VI efficiency level, operating temperature of -20 to 40°C (60°C maximum at 50% load)
• Each output terminated with 0.1μF multilayer ceramic and 47μF low ESR electrolytic capacitors
• AC inlet type is IEC320/C14, safety approvals are UL/cUL 60601, TUV, UKCA, CB, EMI/EMC-CE, FCC
