CC2520RHDR
RF Transceiver, 2.394GHz to 2.507GHz, DSSS, 250 Kbps, 5dBm out, -98dBm in, 1.8V to 3.8V, VQFN-28

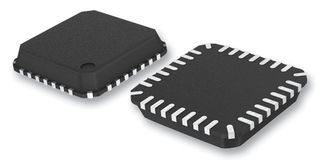

Image is for illustrative purposes only. Please refer to product description.
435 In Stock
Need more?
EXPRESS Delivery in 1-2 business days
Order before 5pm
FREE Standard Delivery
on orders Kč0.00 and above
Accurate delivery times will be calculated at checkout
| Quantity | Price (ex VAT) |
|---|---|
| 10+ | Kč122.140 |
| 25+ | Kč113.111 |
| 50+ | Kč108.095 |
| 100+ | Kč103.079 |
| 250+ | Kč98.063 |
| 500+ | Kč95.304 |
Price for:Each (Supplied on Cut Tape)
Minimum: 10
Multiple: 1
Kč1,341.40 (ex VAT)
A Kč120.00 re-reeling charge will be added for this product
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTEXAS INSTRUMENTS
Manufacturer Part NoCC2520RHDR
Order Code3124285RL
RF Primary FunctionTransceiver
Frequency Min2.394GHz
Frequency Max2.507GHz
Supply Voltage Min1.8V
RF / IF ModulationDSSS
Data Rate250Kbps
Supply Voltage Max3.8V
Transmitting Current28.8mA
Receiving Current24.8mA
IC Case / PackageVQFN
RF IC Case StyleVQFN
No. of Pins28Pins
Operating Temperature Min-40°C
Output Power (dBm)5dBm
Sensitivity dBm-98dBm
Operating Temperature Max125°C
Product Range-
RF Transceiver ApplicationsIEEE 802.15.4 Systems, ZigBee Systems, Industrial Monitoring and Control , Automatic Meter Reading
SVHCNo SVHC (27-Jun-2018)
Technical Specifications
RF Primary Function
Transceiver
Frequency Max
2.507GHz
RF / IF Modulation
DSSS
Supply Voltage Max
3.8V
Receiving Current
24.8mA
RF IC Case Style
VQFN
Operating Temperature Min
-40°C
Sensitivity dBm
-98dBm
Product Range
-
SVHC
No SVHC (27-Jun-2018)
Frequency Min
2.394GHz
Supply Voltage Min
1.8V
Data Rate
250Kbps
Transmitting Current
28.8mA
IC Case / Package
VQFN
No. of Pins
28Pins
Output Power (dBm)
5dBm
Operating Temperature Max
125°C
RF Transceiver Applications
IEEE 802.15.4 Systems, ZigBee Systems, Industrial Monitoring and Control , Automatic Meter Reading
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Tariff No:85423990
US ECCN:5A992.c
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2018)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.002
