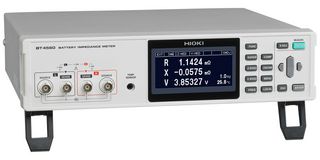

BT4560

BT4560 is a battery impedance tester can make EIS measurements quickly and easily in applications ranging from R&D to manufacturing. It delivers high-precision measurement capability for quality control of high-capacity batteries, and it can be expanded into an evaluation system for efficiently measuring multiple batteries. In addition, a new LAN interface simplifies the process of building a testing system, offering additional convenience. Functions tester perform are comparator, self-calibration, sample delay, average, voltage limit, potential gradient compensation for impedance measurement, charge/discharge prevention during AC signal application, key lock, system test, panel saving and loading (up to 126 condition sets).

• EIS measurement frequency: 0.01Hz to 1.05KHz
• Simultaneous measurement of impedance, voltage, & temperature
• Convenient evaluation application software for R&D use
• Data compatibility with third-party equivalent circuit analysis software
• For production lines: LAN interface & advanced multi-channel solutions
• Up to 5V allowable input voltage
• LAN, RS-232C, USB, EXT. I/O (NPN/PNP can be switched) interfaces
• Rated supply voltage range from 100VAC to 240VAC
• Rated supply frequency range from 50Hz/60Hz and rated power 80VA max
• Dimension (W x H x D) is 330 × 80 × 293mm (12.99 × 3.15 × 11.54in)

Obsah

Tester, Power cord × 1, Instruction manual × 1, Zero-adjustment board × 1, USB cable (A-B type) × 1, CD-R (comes with communication instruction manual, PC application software, and USB driver) × 1.

Poznámky

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
