50 Nyní si můžete rezervovat zásoby na skladě
Množství | |
---|---|
1+ | 737.603 Kč |
10+ | 637.032 Kč |
25+ | 538.969 Kč |
100+ | 528.937 Kč |
250+ | 518.404 Kč |
500+ | 507.870 Kč |
Informace o produktu
Přehled produktu

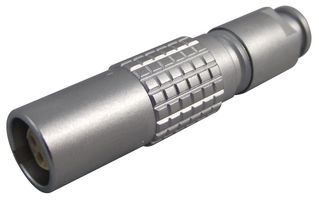

The PHG.0B.304.CLLD52Z is a 4-way Circular Connector, 0B series, free receptacle with cable collet and nut for fitting a bend relief. Single key, male (plug) contacts and female (socket) contacts. Push-pull self-latching system with four solder contacts. Chrome-plated brass shell and collet nut, nickel plated brass latch sleeve and mid pieces. The modular design of the 0B series connector offers a solution for most applications. The push pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.
- 7A Current rating
- PEEK insulator
- G Key standard
- IP50 Protection rating
- 5000 Maximum matings
- 6.1mΩ Maximum resistance
- 0.7mm Contact diameter
- 360° Screening for full EMC shielding
- 4 Low voltage insert configuration
Technické specifikace
Kruhový Průmyslový
Zásuvka pro Montáž na Kabel
Pájecí Zásuvka
Tělo z Mosazi
-
No SVHC (17-Jan-2023)
Série 0B
4Kontaktů
Tlačit-Táhnout
Chrom
-
Technické dokumenty (3)
Související produkty
Nalezené produkty: 5
Legislativa a životní prostředí
Country in which last significant manufacturing process was carried outZemě původu:Great Britain
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Osvědčení o shodě
