193132-02

193132-02 is a USB‑6008 8 AI (12-bit, 10kS/s), 2 AO (150Hz), 12 DIO USB multifunction I/O device. The USB‑6008 is a low-cost, multifunction DAQ device. It offers analogue I/O, digital I/O, and a 32‑bit counter. The USB‑6008 provides basic functionality for applications such as simple data logging, portable measurements, and academic lab experiments. The device features a lightweight mechanical enclosure and is bus powered for easy portability. You can easily connect sensors and signals to the USB‑6008 with screw-terminal connectivity. The included NI‑DAQmx driver and configuration utility simplify configuration and measurements.

• Dimension is 81.78mm × 85.09mm × 23.11mm (with connectors)
• Operating temperature range from 0°C to +55°C
• Meets IEC 61010-1, EN 61010-1, UL 61010-1, CSA C22.2 No. 61010-1 safety compliance standards

Poznámky

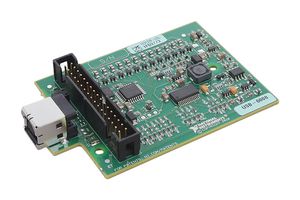

Board only (no enclosure).
