779975-01

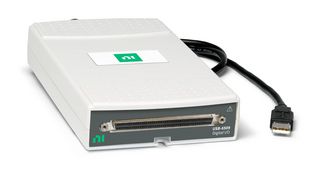

Digital I/O Device, USB-6509, 96 Input/Output, USB 2.0, 0 V to 5 V, DAQ Device
11 Nyní si můžete rezervovat zásoby na skladě
| Množství | |
|---|---|
| 1+ | 19 618.830 Kč |
Informace o produktu
Přehled produktu
779975-01 is a USB-6509 industrial, bus-powered USB device that can directly drive external digital devices such as solid-state relays (SSRs). You can configure each port for input or output, and no external power supply is required for outputs. Using programmable power-up states, you can configure the initial output states in software to ensure glitch-free, safe operations when connected to industrial actuators. If a computer or application fault occurs, the USB-6509 can use digital I/O watchdogs to switch to a configurable safe output state to ensure detection and safe recovery from fault conditions. Programmable input filters eliminate glitches/spikes and provide debouncing for digital switches/relays through a software-selectable digital filter.
- 96 channel, TTL/CMOS USB digital I/O device
- Digital input voltage range from 0V to 5V
- Output voltage range from 0V to 5V
- Single-ended digital I/O channel current drive of 1.5mA
Technické specifikace
Digitální I/O Zařízení
-
-
0V až 5V
NI DAQ Zařízení
To Be Advised
-
-
96I/O
0°C až +55°C
USB-6509
Technické dokumenty (3)
Související produkty
Nalezené produkty: 8
Legislativa a životní prostředí
Country in which last significant manufacturing process was carried outZemě původu:Hungary
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Osvědčení o shodě
