8G16D 500R 0.1
Rezistor Skrz Desku, 500 ohm, 8G16 Series, 330 mW, ± 0.1%, Axiální Vývodové, 175 V
50 Nyní si můžete rezervovat zásoby na skladě
| Množství | |
|---|---|
| 1+ | 311.494 Kč |
| 3+ | 245.533 Kč |
| 5+ | 209.418 Kč |
| 10+ | 193.367 Kč |
| 20+ | 177.316 Kč |
| 50+ | 153.991 Kč |
Informace o produktu
Přehled produktu

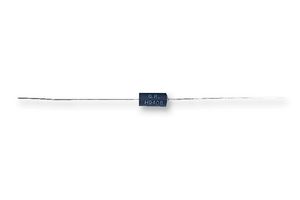

The 8G16D 500R 0.1 is a 500Ω 330mW axial leaded through-hole mounting Precision Resistor with wirewound element. The highest quality copper alloy wire drawn from melts of known resistivity and controlled temperature co-efficient. The maximum operating temperature due to ambient and power dissipation within the resistor is 160°C. To minimize inductance, the direction of winding is reversed at the half turns point. During the manufacturing process the resistor undergoes an ageing process for a minimum of one week in a temperature controlled oven in order to completely stabilize the winding prior to calibration.
- Moulded epoxy encapsulation
- 22AWG Tinned copper leads
- -55 to 125°C Operating temperature range
Technické specifikace
500ohm
330mW
Axiální Vývodové
Drátový
Precizní
12.7mm
-55°C
-
8G16 Series
± 0.1%
175V
± 5ppm/°C
6.35mm
-
125°C
No SVHC (17-Jan-2022)
