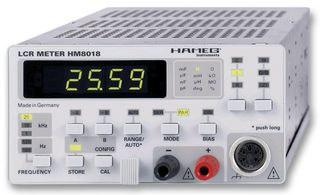

R&S HM8018...

Measured values are displayed on a 3½ digit LED with a basic accuracy of 0.5%. Measurements are performed at a 2 per second rate. Through the 3 used oscillator frequencies, which automatically switch upon range selection, the instrument always operates at the optimum test frequency. Measures L, C, series and parallel components of inductances and capacitances can be determined with the HM8018, providing easy evaluation of the quality or dissipation factors of the components under test. A special measurement technique allows separation of real and imaginary components up to a phase angle of 45° with an accuracy of ≤1%. The high degree of resolution, 10mW/ 0.01µS ensures precise and reliable test results. The accuracy and operability of the HM8018 make it ideal for use in virtually every area of electronic technology, including quality control and laboratory applications. The low number of operating controls ensures a maximum of measurement functions.

• Measurement functions: L, C, R, Θ, Q/D, Z
• Basic accuracy: 0.2  %
• Five measurement frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 25 kHz
• Max. resolution: 0.001 Ω, 0.001 pF, 0.01 µH

Obsah

LCR Meter HM8018, Operating manual.

Poznámky

Služby kalibrace jsou k dispozici pro tento produkt. Vyberte si ze Standardní Certifikační Služby nebo mezinárodně uznávané UKAS akreditované kalibrace. Navštivte naši stránku o kalibraci pro více detailů.
