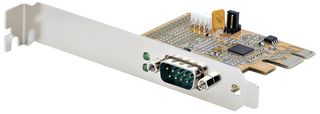

11050-PC-SERIAL-CARD

11050-PC-SERIAL-CARD is a 1-port PCI Express serial card. Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device. Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.

• High performance 16C1050 UART
• Asix AX99100 chipset with 256 byte FIFO
• Max. baud rate of 921.6Kb/s
• Odd/Even/Mark/Space/None Parity modes
• 5/6/7/8/9 Data bits
• COM retention and LED status indicators
• PCI-Express 2.0 x1 interface
• Supports Windows 7/8/10/11, Server 2016/2019 & Linux 2.6.13 (LTS versions only)
• Supplied with low profile bracket
• 2 year manufacturer warranty, including free lifetime 24/5 multi-lingual technical assistance

Obsah

Card, LP bracket and user guide.
