DK-42688-P

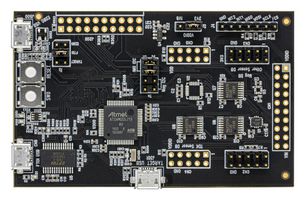

ICM-42688-P development Kit is a comprehensive development platform for ICM-42688-P, a high performance 6-axis motion sensor that combines a 3-axis gyroscope and a 3-axis accelerometer. The platform is designed around Microchip G55 MCU can be used by developers for rapid evaluation and development of ICM-42688-P based solutions. The development kit comes with necessary software including InvenSense motion link, a GUI based development tool and embedded motion drivers for ICM-42688-P. Embedded motion drivers (eMD) consists of a set of APIs to configure various aspects of the platform including ICM-42688 sensor parameters such as full-scale range (FSR), output data rate (ODR), low-power or low-noise mode, and sensor interface to host. MotionLink is a GUI based development tool included with the platform. It can be used to capture and visualize the sensor data from the motion sensor.

• On-board embedded debugger for programming and debugging
• USB connectors for host interface to support software debug and sensor data logging
• Board power supply through USB
• Sensor fusion
• Accelerometer and gyroscope calibration
• Game rotation vector, gravity, linear acceleration Android functions
• Step detection and step count pedometer functions
• Tap, tilt, raise to wake/sleep gestures

Obsah

ICM-42688-P development board, Software.
