CC256XQFNEM

The CC256XQFNEM is an Bluetooth/dual mode evaluation module. The CC256x device is a complete Bluetooth BR/EDR/LE HCI solution that reduces design effort and enables fast time to market. Based on seventh generation Bluetooth core, the device brings a product proven solution that supports Bluetooth 4.0 dual mode (BR/EDR/LE) protocols. Power management hardware and software algorithms provide significant power savings in all commonly used Bluetooth BR/EDR/LE modes of operation. With transmit power and receive sensitivity, this solution provides a best in class range of about 2x, compared to other BLE-only solutions. A royalty-free software Bluetooth stack available from is pre integrated with MSP430 and ARM M4 MCUs.

• Bluetooth Specification v4.0
• Dual mode Bluetooth & Bluetooth low energy or ANT
• StoneStreet one Bluetopia stack with many profiles
• Other profiles available on request i.e. Audio Profiles
• FCC, IC, CE certified
• High sensitivity (-93dBm typ.)
• UART interface
• Four layer PCB design

Obsah

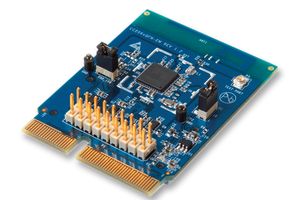

CC256x EM board with CC256x device with QFN package, One Jumper for MSP-EXP430F5438 board, Four Jumpers for MSP-EXP430F5529 board.

Poznámky

Experimenter boards sold separately.
