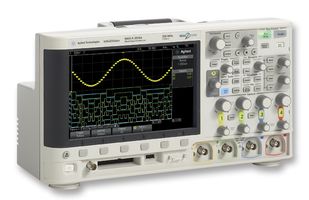

DSOX2004A

The InfiniiVision 2000 X-Series features Keysight's patented MegaZoom IV smart memory technology that is always enabled and always responsive providing the industry's fastest update rate at up to 200,000 waveforms per second, with no compromise if you turn on measurements or add digital channels. In addition, the 2000 X-Series offers 23 automated measurements such as voltage, time, and frequency as well as 14 waveform math functions including add, subtract, multiply, divide, and FFT. (Specifications are for units manufactured from March 2018).

• High resolution 8.5-inch WVGA (800 x 480) display
• Up to 200,000 wfms/s update rate
• Fast, responsive MegaZoom IV deep memory, 1Mpts and segmented memory
• WaveGen built-in function generator (optional)
• Upgradable bandwidth, MSO, WaveGen built-in 20MHz function generator and measurement applications
• Connectivity: USB host (one front, one back), USB device, LAN (optional), GPIB (optional)
• Dimensions (H x W x D): 8.05 x 14.98 x 5.57"
• Advanced Triggers
• The DVM (digital voltmeter DSOXDVM) upgrade is now free, and integrated on the 2000 and 3000 InfiniiVision X-Series
• The Educator’s Oscilloscope Training Kit (DSOXEDK) upgrade is also free and integrated with all InfiniiVision X-Series. Visit www.keysight.com/find/scopes-edu

Obsah

A BenchVue software license (BV0004B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences.
