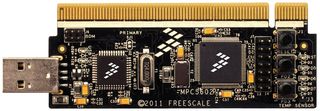

TRK-USB-MPC5602P
Vývojová Sada, StarterTRAK USB, 32-Bit MPC5xxx MCU, Teplotní Senzor, Tower System Konektor
Informace o produktu
Přehled produktu
The TRK-USB-MPC5602P is a StarterTRAK USB development kit for MPC5602P 32bit Qorivva microcontroller. The Qorivva MPC5602P 32bit microcontroller (MCU) includes the latest in integrated devices for sophisticated chassis applications. These scalable power architecture devices are supported by an enablement ecosystem that includes software drivers, operating systems and configuration code to help you quickly implement your designs. The Embedded OSJTAG circuitry on the TRK-USB-MPC5602P board allows the processor on the board to be debugged and programmed via USB from a PC. In addition, the demo board can be powered using the USB bus.
- Three user programmable multi coloured LEDs
- Two user programmable push buttons
- Temperature sensor
- Primary tower system connector
- OSBDM debugger through USB
- 14 pin JTAG connection port
- 14 pin JTAG connection port
- Embedded OSJTAG
Obsah
TRK-USB-MPC5602P board, Warranty card.
Poznámky
OSJTAG integrovaný na desce je určen pro provoz pouze s interním procesorem. Nelze jej použít pro komunikaci s jinými zařízeními.
Technické specifikace
NXP
Qorivva
Power Architektura
Pouze Deska
No SVHC (15-Jan-2019)
32bitů
Power Architektura
MPC5xxx
Compute Module 3+ Series
