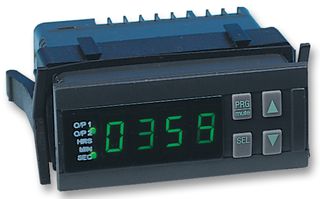

TT32ML

The TT32ML is a 4-digit multi-function multi-time range Dual Digital Timer suitable for controlling operation of equipment, machinery, systems or processes in a wide range of industrial applications. Nine timing functions can be selected together with time ranges from 0.1second to 99:59hours, to operate two independent relay output contacts which are isolated from the supply voltage. The output contacts can be configured as two timed outputs or one timed and one instantaneous output. This timer is housed in a compact panel mounting enclosure and is powered from 12 to 24VAC/DC.

• 4-digit Green LED display dual timer
• 9 Programmable timing modes
• 6 Time ranges from 0.1s to 99:59h
• Supply voltages from 12 to 24VAC/DC
• 1 changeover and 1 N/O relay output
• External hold and reset
• Security passcode
• IP65 Enclosure
• Panel mounting
• Matching temperature controllers
