RX FM8SF
RF MODULE, RECEIVER, FM, 868.30MHZ

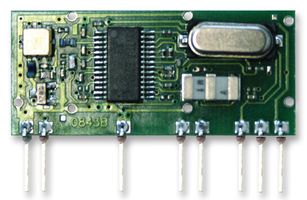

Image is for illustrative purposes only. Please refer to product description.
No Longer Stocked
Product Information
ManufacturerAUREL
Manufacturer Part NoRX FM8SF
Order Code1699485
Technical Datasheet
RF ModulationFM
Data Rate Max-
Frequency868.3MHz
Sensitivity dBm-111dBm
Supply Voltage Min4.5V
Supply Voltage Max5.5V
Supply Current7mA
Supported Devices - RF Receivers-
RF Receiver Applications-
Product Range-
SVHCNo SVHC (17-Dec-2014)
Product Overview
RX-FM4SF is a super-heterodyne FM receiver with high sensitivity and selectivity. It is equipped by front-end SAW filter that allows an high noise immunity. Enable pin allows to reach power down mode without signal and reduce consumption up to 0.5µA . It is ideal for Microchip Keeloq encoders. It is used in association with TX 869 BOOST transmitter obtains a complete system with an high budget link and useful to take advantage of the best transmitter technical features.
- Front-end SAW filtered to an higher electromagnetic immunity
- High sensitivity and sensibility super-heterodyne FM receiver
- Ideal for Microchip Keeloq encoders
- Enable pin allows to reach power-down mode without signal and reduce consumption up to 0.5 µA
- Low cost FM receiver
Applications
Communications & Networking, Wireless, Security
Technical Specifications
RF Modulation
FM
Frequency
868.3MHz
Supply Voltage Min
4.5V
Supply Current
7mA
RF Receiver Applications
-
SVHC
No SVHC (17-Dec-2014)
Data Rate Max
-
Sensitivity dBm
-111dBm
Supply Voltage Max
5.5V
Supported Devices - RF Receivers
-
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Italy
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Italy
Country in which last significant manufacturing process was carried out
Tariff No:85389091
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Dec-2014)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005
