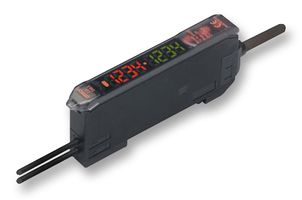

E3XDA11S

The E3XDA11S is a Digital Fiber Amplifier with light-ON NPN output configuration and. This amplifier come with pre-wired cable. This high accuracy digital fiber amplifier features high resolution of 4000 digits for long sensing distances and accurate settings. It features reverse polarity for power supply connection and protected against output short-circuit protection. The power tuning is by light emission power and reception gain digital control methods. The high-speed control method is for emission current control to provide constant LED output power (APC). It comes with polybutylene terephthalate (PBT) case and polycarbonate cover.

• Short response time of only 50µs (turn-on) for fast sensing processes
• Mutual interference suppression for simultaneous sensor operations
• Two large easy to read displays
• Stable long term performance due to OMRON's APC function
• Environmentally friendly design
• 20MΩ at 500VDC Minimum insulation resistance
• 1000VAC at 50/60Hz for 1 minute Dielectric strength
• IP50 Protection rating

Applications

Sensing & Instrumentation, Industrial
