Product Information
ManufacturerPANASONIC
Manufacturer Part NoSF4D-DC24V
Order Code4388409
Product RangeSF4D
Technical Datasheet
Coil Voltage24VDC
Contact Configuration4PST-NO, 4PST-NC
Product RangeSF4D
Relay MountingThrough Hole
Contact Current6A
Relay TerminalsSolder
Contact Voltage AC Nom250V
Contact Voltage DC Nom-
Contact MaterialSilver Tin Oxide
IP Rating-
SVHCNo SVHC (23-Jan-2024)
Product Overview

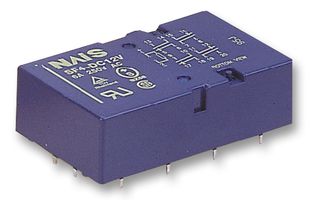

The SF4-D-24 is a 8-pole polarized, monostable Safety Relay with forcibly guided contacts. 4NO-4NC contact configuration, AgSnO2 with Au flash contact. Relay complies with EN 50205, Type B. Overvoltage category as per IEC 60664-1 III/4kV. Rated voltage as per IEC 60664-1 basic insulation.
- IP67 Protection rating
- -40 to 70°C Operating temperature range
Applications
Industrial, Power Management, Automation & Process Control
Technical Specifications
Coil Voltage
24VDC
Product Range
SF4D
Contact Current
6A
Contact Voltage AC Nom
250V
Contact Material
Silver Tin Oxide
SVHC
No SVHC (23-Jan-2024)
Contact Configuration
4PST-NO, 4PST-NC
Relay Mounting
Through Hole
Relay Terminals
Solder
Contact Voltage DC Nom
-
IP Rating
-
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85364900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.046
