PSG3441

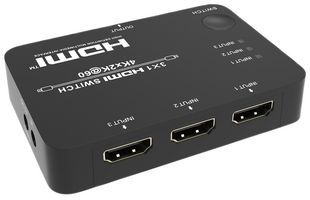

This 18Gb/s 3 way HDMI 2.0 switcher can switch between any three connected HDMI sources to a single HDMI-ready display. It supports video resolutions up to 4K2K @50/60Hz YCbCr 4:4:4. The product supports HDR, HDR10, Dolby Vision & HLG, also in 3D format. The switch has low power consumption of 5V DC via a provided USB lead. Intuitive operation with the onboard button or supplied remote control.

• Connect to HDMI source devices such as DVD player or Playstation with HDMI lead
• The corresponding LED will illuminate when the HDMI input port connects an active source device
• Press a button to switch HDMI source signal for the HDMI output
• Connect to one HDMI display device such as HDTV or Monitor with HDMI lead
• DC 5V power input connector (lead supplied)
• Connect IR Receiver lead to receive the remote control signal
• HDCP 2.2/1.x
• Outputs: 1x HDMI 2.0 (A)
• Inputs: 3x HDMI 2.0 (A), 1x IR (3.5mm stereo jack)
• Power supply: 5V DC 1A, 1.5W
• Audio: PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio
• Video resolution: Up to 4k2k @60Hz (18Gbps, 8-bit)
• Dimensions (HxWxD): 19x87x60mm
• Weight: 60g

Applications

Sound & Video, Hobby & Education, Low Voltage, Signal Processing, Music, Audio Visual

Contents

HDMI Switch, Remote Control, IR Receiver Lead, USB Power Lead and user guide
