AKM2

The PDA200E/L Lift Loop Kit for Elevators (Part No. AKM2) is a cost-effective induction loop system that is suitable for use in lift cars designed for use with the hearing impaired.

• Satisfies the requirements of the disability Discrimination Act (DDA) and BS EN 81-70 (5.4.4.3 c)
• Fully compliant with the relevant parts of BS 7594 (When correctly installed and BS EN 60118-4
• 2 Line level inputs connect directly to the PDA200E/L induction loop amplifier; 2x inputs from the floor announcement system and emergency communication system
• Loop cable can installed either on top, or in the suspended ceiling of a lift car
• Internal tamper-resistant drive, level and tone controls can be manually adjusted to suit system requirements
• Two balanced/unbalanced line level inputs
• Input peak (limit), output drive 91, 2, 3 Peak current) and power on (power) LEDs
• Fully automatic compressor limiter which maintains the loop signal to improve intelligibility
• Robust metal enclosure for mounting on lift car
• Easy to fit with straightforward internal screw connectors allowing installation by a competent electrician
• Microphone Impedance: 600Ω balanced/unbalanced
• Microphone Sensitivity: 2-5mV (-46db to -50db)
• Microphone Phantom: 12V
• Line Input impedance: 10kΩ balanced/unbalanced
• Line Sensitivity: 0dbv (300mV rms to 1.5V rms)
• 100V Line Input impedance: 200kΩ
• 100V Line Sensitivity: +40dbv
• Bandwidth: 40Hz to 8kHz
• Input dynamic range: 36dB
• Loop impedance: 0.2 to 2Ω
• Dimensions (WxHxD): 273x200x77mm
• Weight: 2.9kg

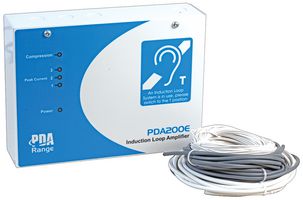

Contents

1x PDA200E/L induction loop amplifier, 2-Core screened cable, 0.5mm loop cable, 0.5mm mains cable and installation accessories.
