PC93-150X150X0.5

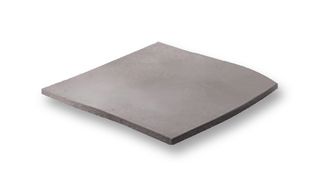

Thermal Pad, Non-silicone, 150 mm x 150 mm x 0.5 mm, 2 W/m.K
Image is for illustrative purposes only. Please refer to product description.
3 In Stock
10 more incoming. You can reserve stock now
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | Kč598.158 |
| 5+ | Kč512.635 |
| 10+ | Kč472.256 |
| 20+ | Kč407.801 |
| 50+ | Kč399.524 |
Price for:Each
Minimum: 1
Multiple: 1
Kč598.16 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerT GLOBAL
Manufacturer Part NoPC93-150X150X0.5
Order Code2466893
Technical Datasheet
Thickness0.5mm
Conductive Material-
Thermal Conductivity2W/m.K
Thermal Impedance-
Volume Resistivity-
External Length150mm
External Width150mm
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The PC93-150X150X0.5 is a 150 x 150 x 0.5mm grey non-silicone Thermal-conductive Pad with low contact thermal impedance and good thermal conductivity.
- Silicone-free
- Long term stability
- UL94V-0 Flammability rating
- 10kV/mm Dielectric breakdown voltage
- -30 to 150°C Working temperature
Applications
Safety
Technical Specifications
Thickness
0.5mm
Thermal Conductivity
2W/m.K
Volume Resistivity
-
External Width
150mm
SVHC
No SVHC (21-Jan-2025)
Conductive Material
-
Thermal Impedance
-
External Length
150mm
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85479000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.052617
