TOOLSTICKDA

TOOLSTICKDA in conjunction with a Toolstick base adapter, provides an interface between the PC’s USB port and the target device’s in system debug/programming circuitry. The 10pin debug ribbon cable connects the adapter to the target board and the target device’s debug interface. The Toolstick debug adapter supports both silicon laboratories JTAG and C2 debug interfaces. Power is provided to the adapter from the USB connection to the PC. The Toolstick debug adapter is capable of providing power to a circuit board via pin 10 of the DEBUG connector.

• TOOLSTICKDA can be used to program and debug a standard Silicon Labs MCU development board
• Toolstick debug adapter requires a target system clock of 32 kHz or greater
• With the default settings, the Toolstick debug adapter can supply up to 75mA to a target system

Obsah

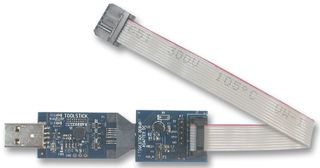

Toolstick debug adapter (USB to Debug Interface), 7inch ribbon cable.

Výstrahy

Napájení cílové desky z toolStick debug adaptéru a nezávislého napájecího zdroje současně může způsobit toolstick adaptér báze a/nebo cílovou desku.

Poznámky

Toolstick debug adaptér vyžaduje Toolstick základní adaptér pro správný provoz.
